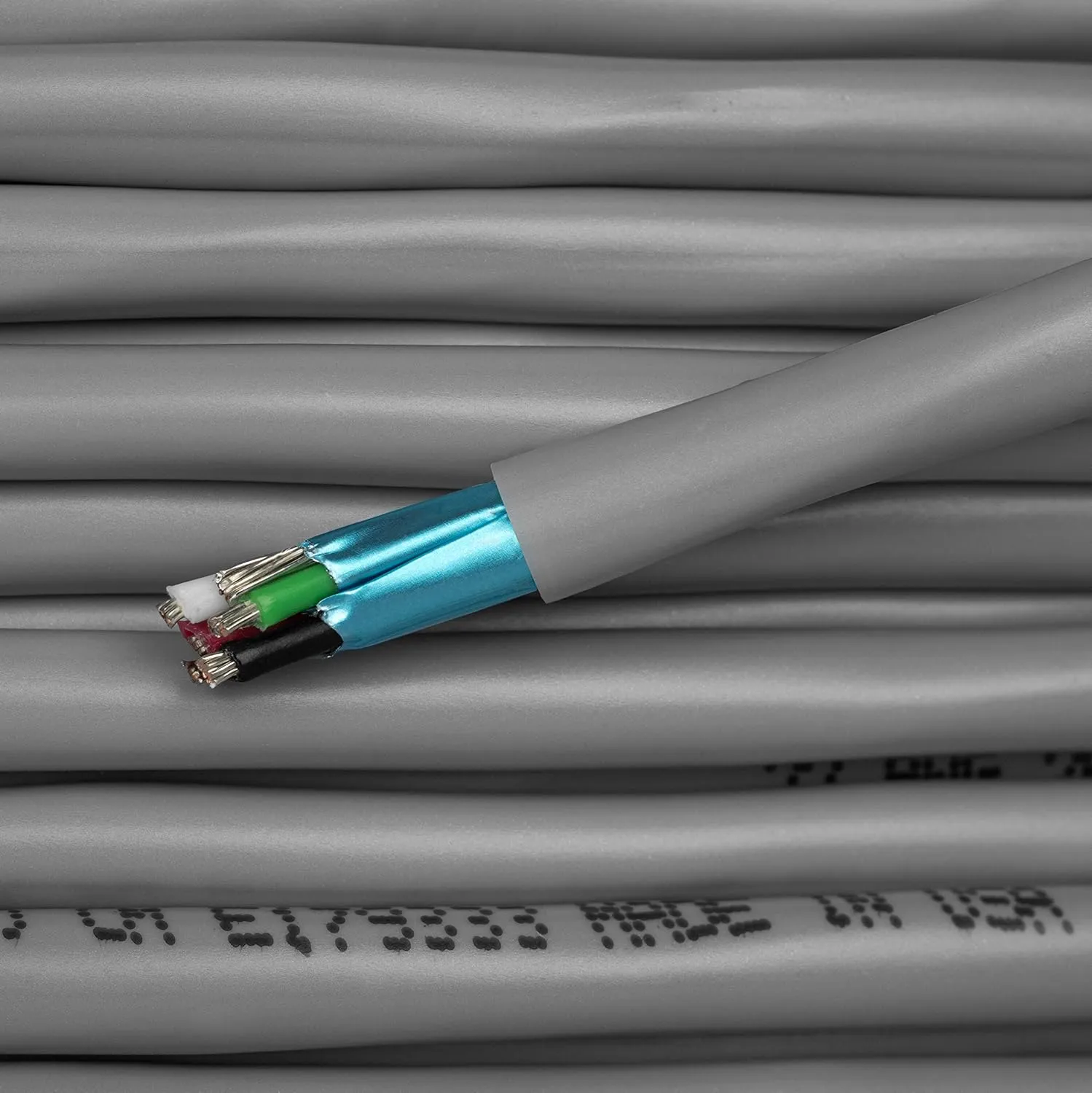

- This cable consists of two pairs of 22 AWG (gauge) 7 strand tinned copper conductors, and each pair is shielded with a 100% coverage aluminum mylar shield each shielded pair has a stranded 24 AWG tinned copper drain wire. The pairs are color coded Red-Black and White-Green. The cable has a Gray PVC Jacket It is rated for 300 volts 75C. This cable is (UL) Certified type CM and it is designed for indoor use.
- This cable has been designed specifically for use in low voltage analog circuits, low voltage digital control, computer communication intercom, sound, alarm and security circuits, and it is approved for installation per NEC (National Electric Code) Articles 800 type CM. This can be used anywhere a stationary control circuit is needed up to 300 Volts. This cable is not designed not rated for outdoor use or direct burial
- This cable has a nominal OD of .160” and weighs 24# per 1000 feet. The cable has a handy rip cord to facilitate easy jacket removal. Footage markings have been added to the jacket so you can always determine the amount remaining on the spool. The cable ships on a 12” diameter plywood spool
- All EWCS products are proudly made in the USA! Have a job that needs another conductor or pair count or requires a different length? EWCS offers a selection of hundreds of electronic & fire alarm cables, rated Riser or Plenum in non-shielded or shielded configurations
