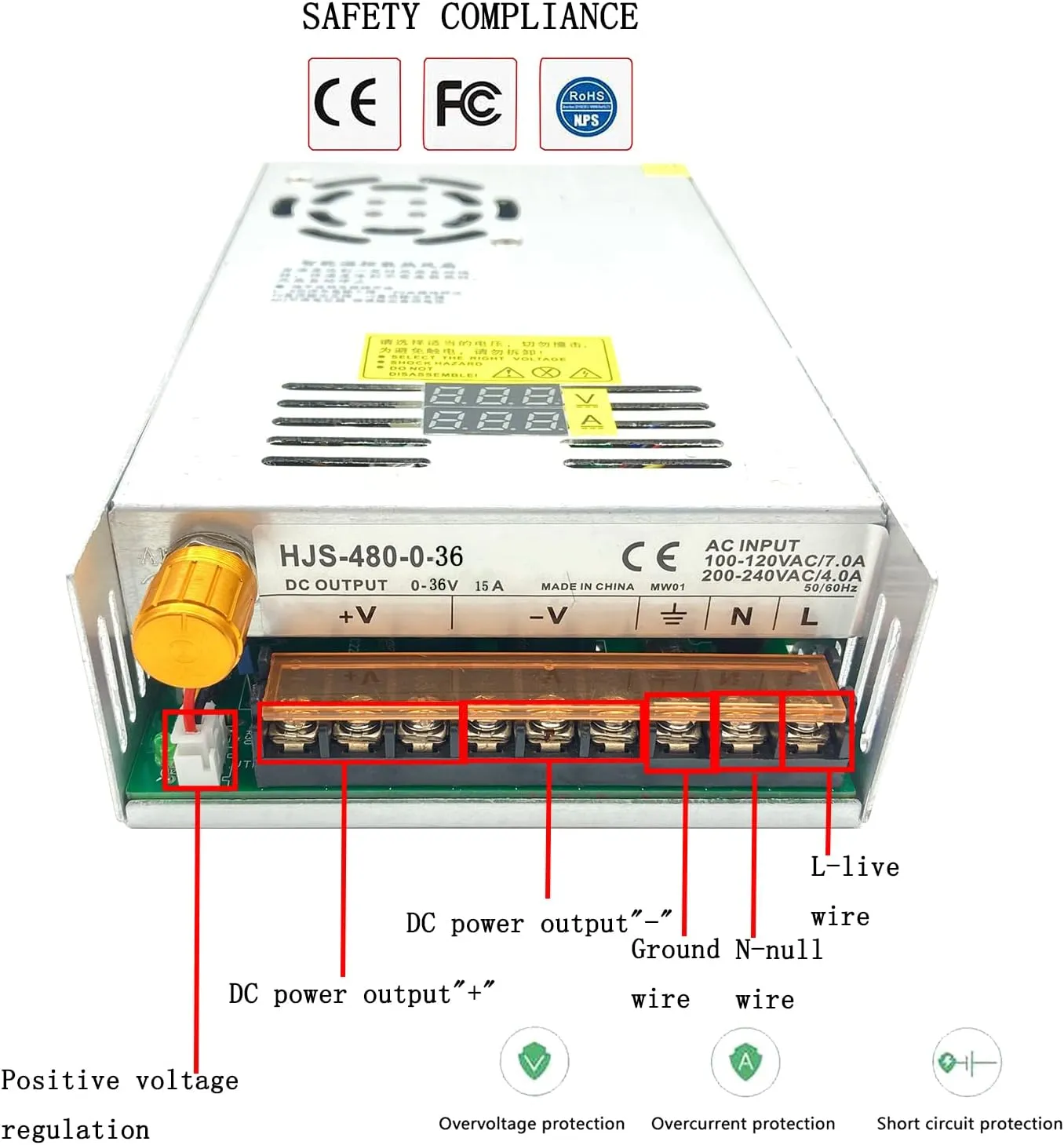

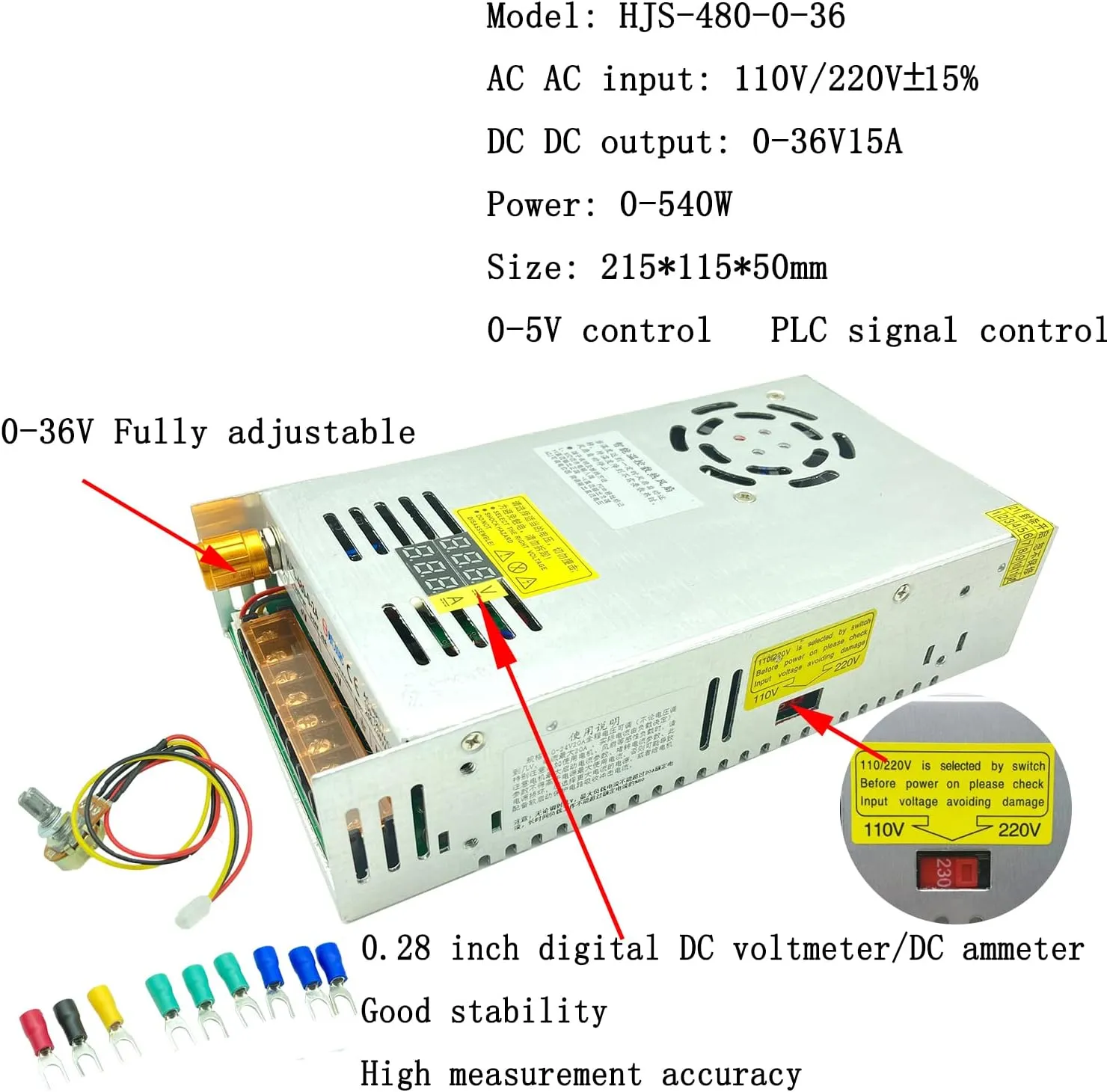

- Universal input voltage: AC 110-220V; output voltage: DC 0-36V 15A; maximum output rated power: 540W. Adjust output voltage in the range of 0-36 volts by internal potentiometer or PLC with 0-5V voltage control. Output voltage/current is displayed digitally in real time. Current limit is not adjustable, current is fixed at 15A actual current is determined by load.Voltage error ±0.1V ammeter error ±0.2V

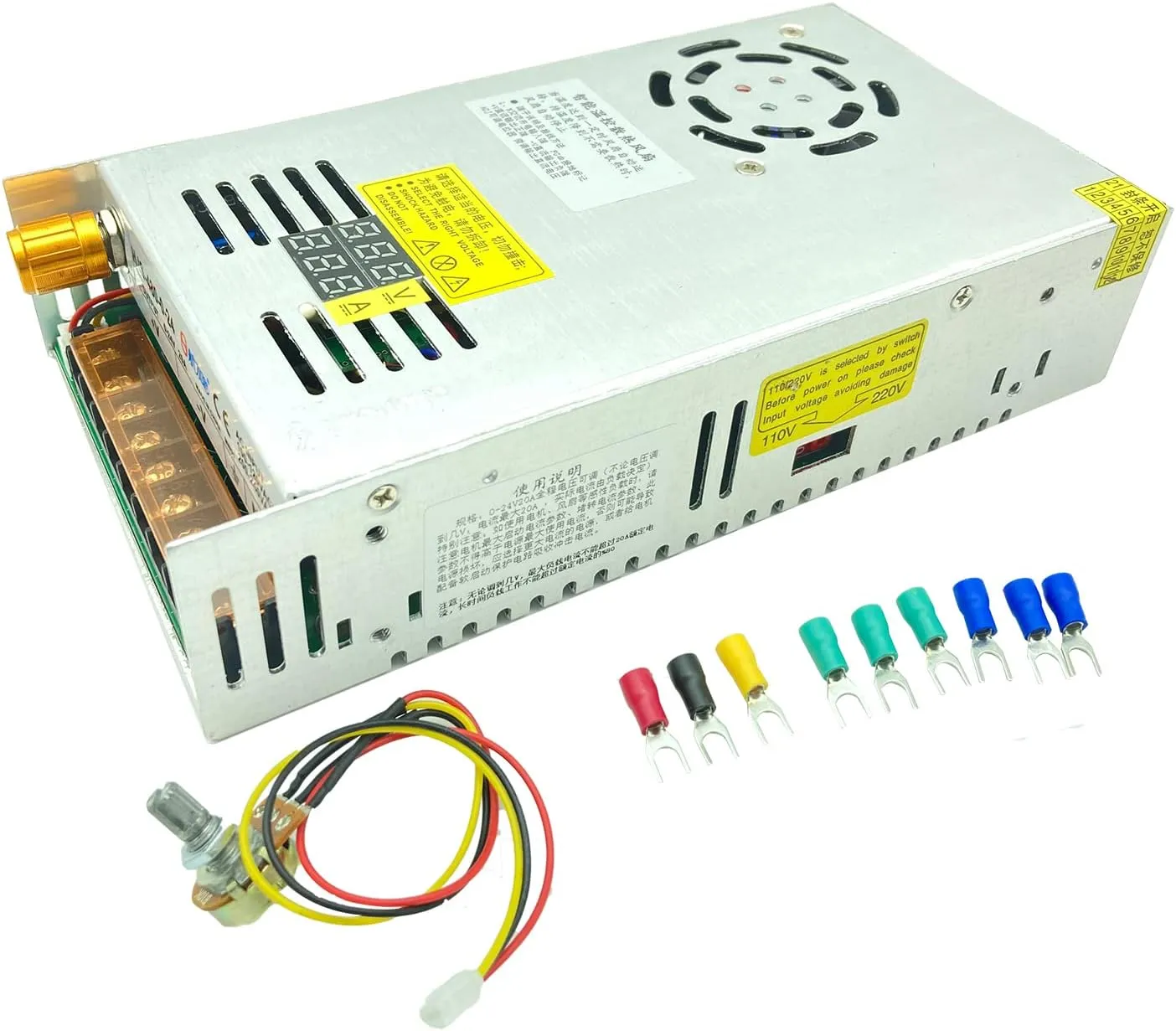

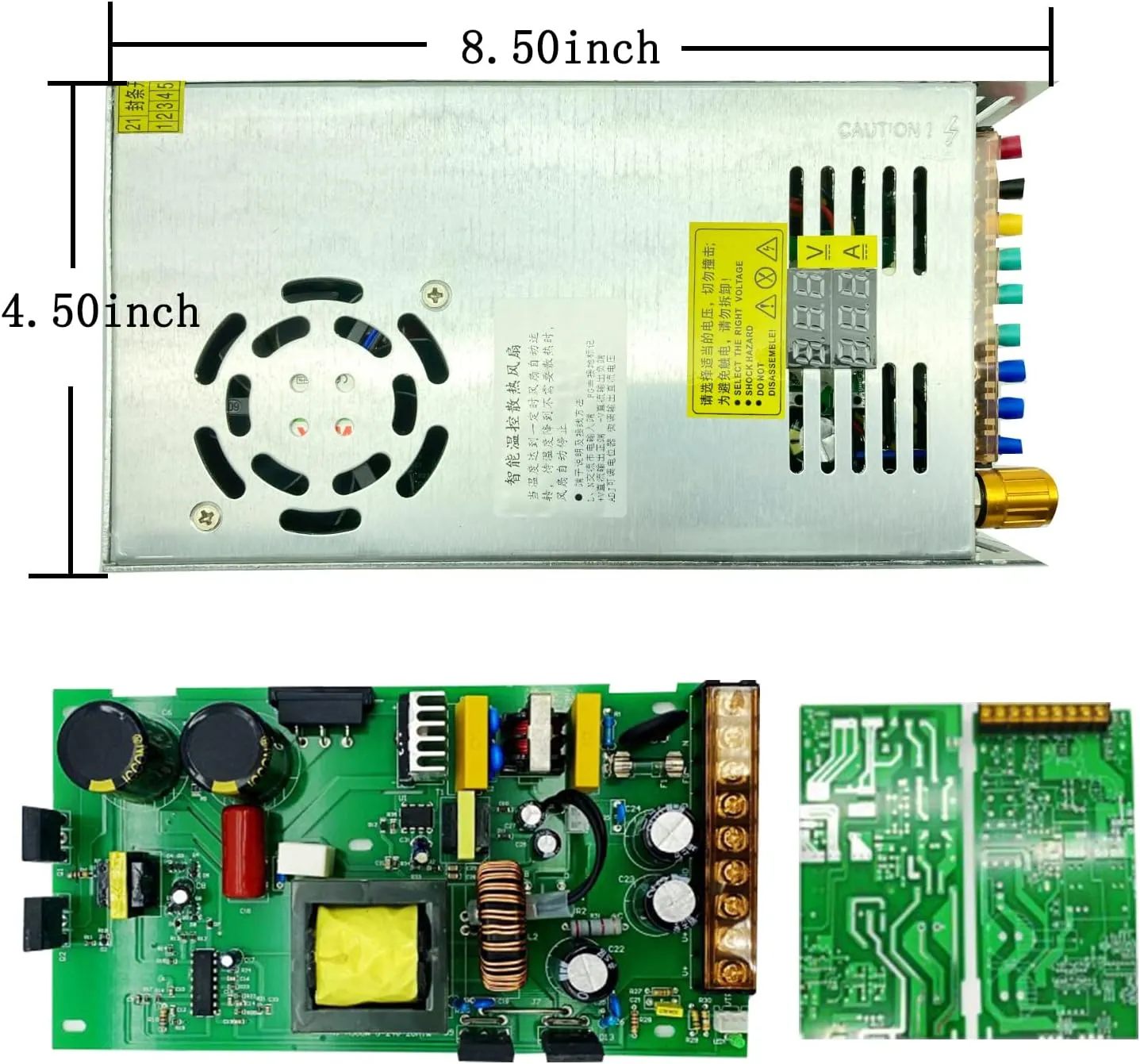

- High quality circuit: low standby power consumption, high conversion efficiency, safe and durable, long service life, portable and small size: 8.5 x 4.5 x 1.5 inches net weight: 0.78 kg, package configuration spare terminals 9, external adjustable potentiometer 1.

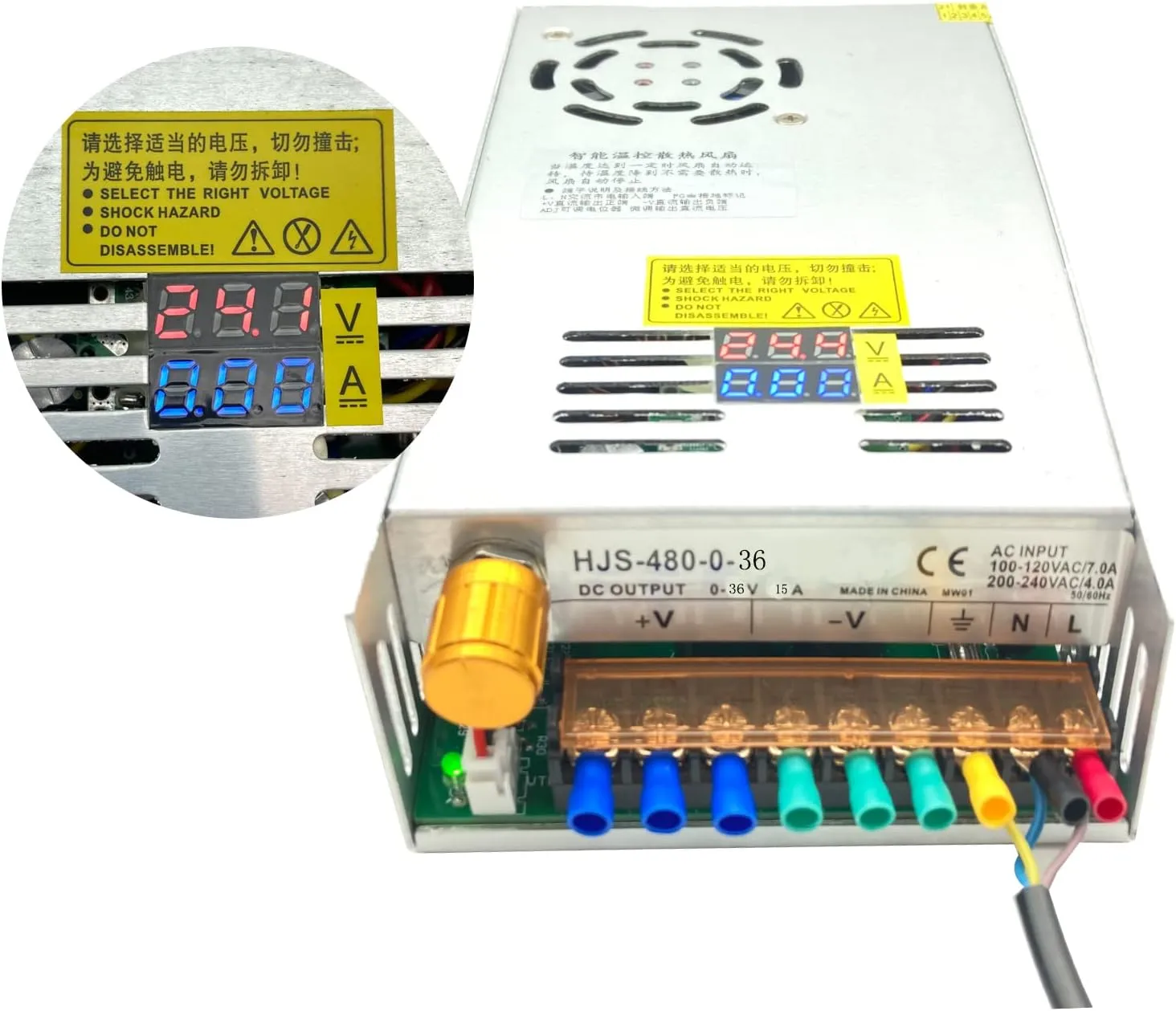

- Voltage display: digital display voltmeter with good stability and high measurement accuracy, when working, you can display the actual voltage on the digital display, product safety compliance: CCC/FCC/CE/RoHS.
- Fan heat dissipation: The full aluminum housing is equipped with an intelligent temperature-controlled silent fan, which will work automatically when the temperature reaches a certain level. When the power supply does not need cooling, the fan will automatically stop working.
- Wide range of applications: used in various DC equipment, 3D printer equipment, DC motor stepless speed control, LED stepless dimming, chemical electrolysis and electroplating speed control, research and testing, student experiments, etc.
